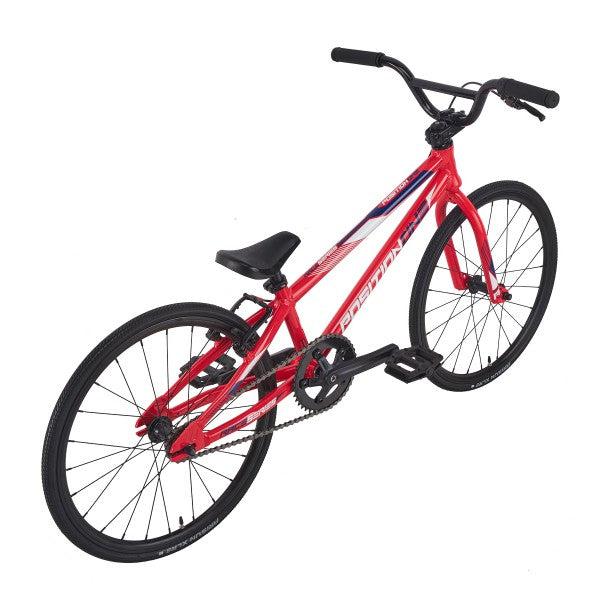

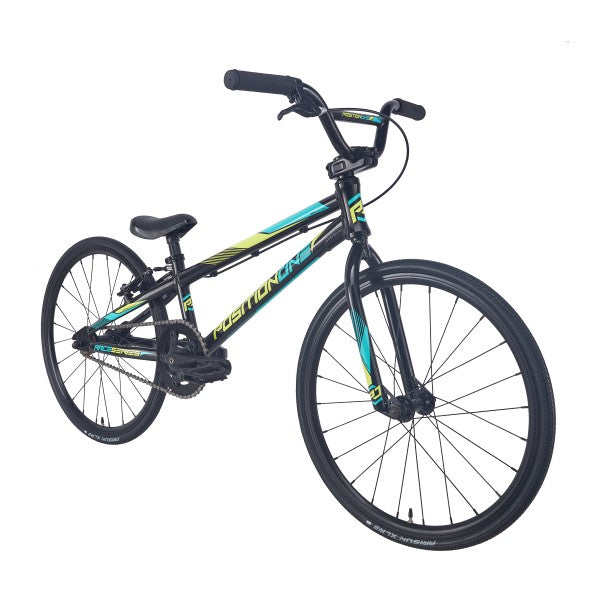

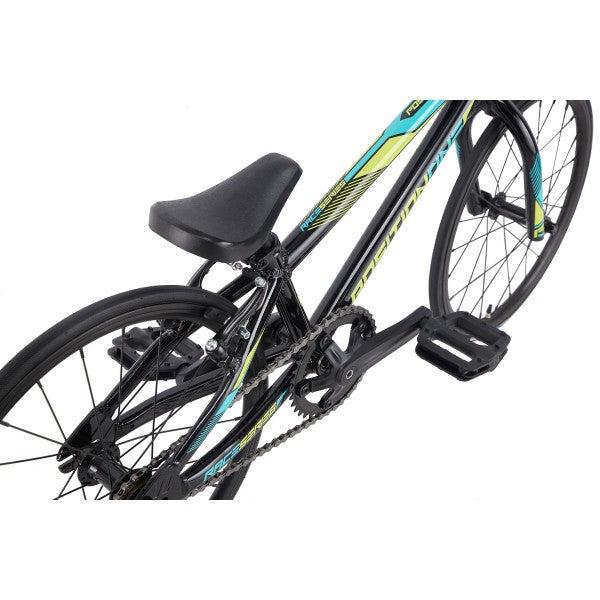

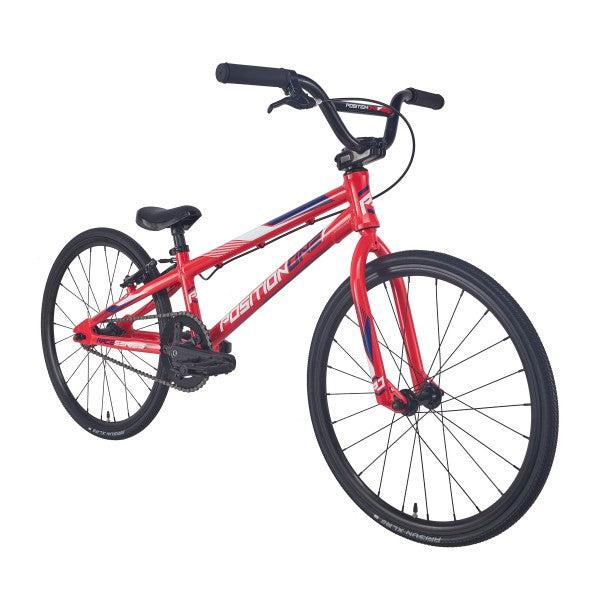

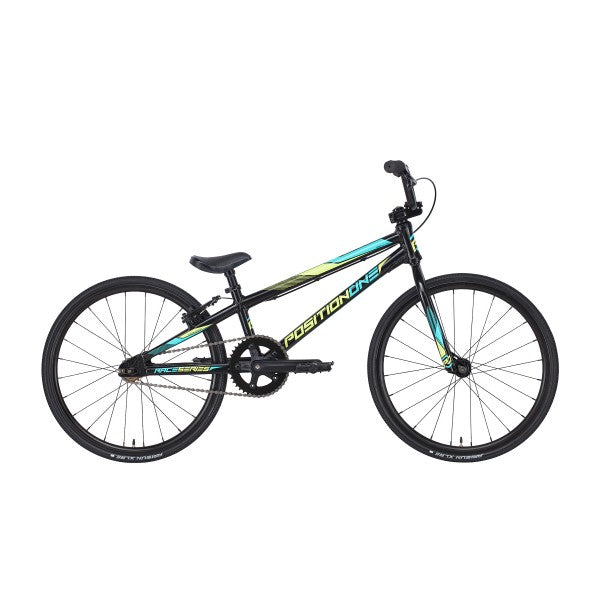

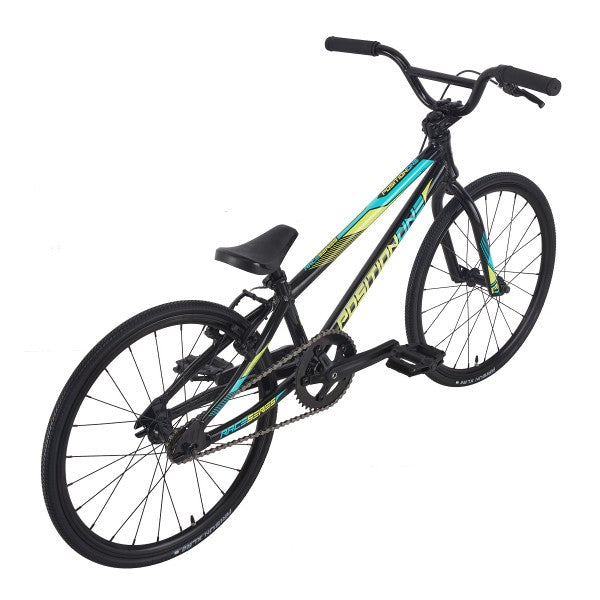

Position One Junior Bike (2024)
Position One Junior Bike (2024)
Close you eyes mum, these kids are ready to send it off the gate and the first jump and the Position One Junior is built to handle the rough and tumble of the Sprocket classes with an all aluminium frame and 100% CrMo forks ready for action. It's also nice and light, 7.7kg!
Other key components have been spec'd to increase durability and decrease maintenance. The alloy rims are double-walled which brings increased strength and the front and rear hubs are sealed to repel the dust from the track. 130mm Alloy three-piece cranks and smaller platform pedals all contribute to a package that has all the thoughtful touches of a bike suited for your youngest, and when they've outgrown it, because of the quality of construction, it'll be perfect for your next kid in line for the gate.
Key Specs:
TT Length: 19.0"
BB Height: 10.25"
Crank Length: 155mm
Gearing: 40x16
Gear Ratio: 47.26"
Tyre Size: 20x1-1/8
| Length | 19.0TT |
| Frame | Junior 19", Top Tube 6061 T6 Alloy, Integrated Head Tube, 1", Water Decals |
| Fork | Full Cr-Mo, 1" Steer Tube |
| Headset | Integrated Sealed Bearing |
| Stem | Top Load 40mm 6061 T6 Alloy |
| Handlebar | 4.25" Rise, 22.75" Wide, 8° Back Sweep & 2° Up Sweep |
| Grips | 130mm Soft Single Ply Without Flange |

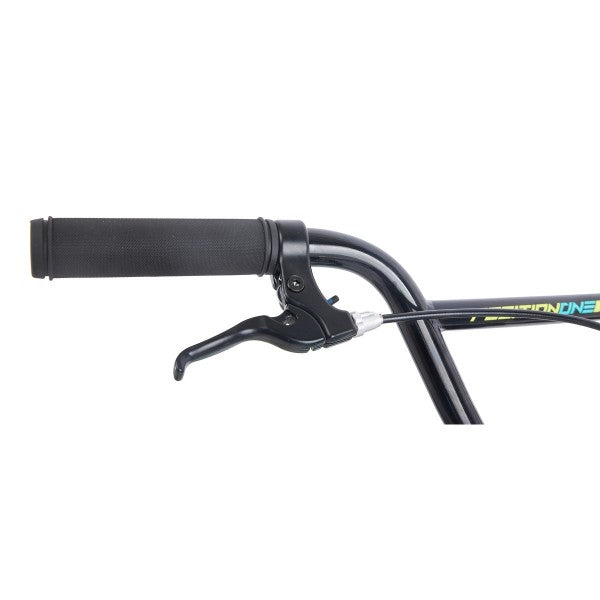

| Brake | Alloy 95mm / Alloy Mini Lever |

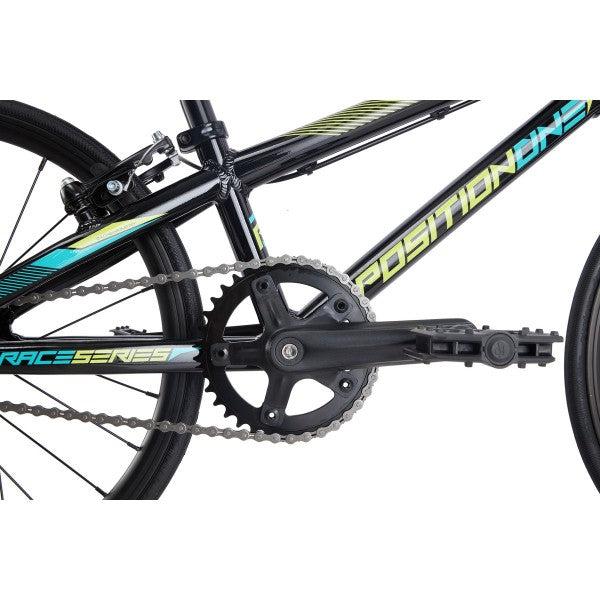

| Crank | 3 Piece Crank 155mm Alloy Arm, Cr-Mo Chain Ring Bolts / Nuts |
| Chainring | 40 Tooth 5 Bolt 110mm 1/2"X3/32" 3mm Steel Ring |
| Chainring Bolts | Steel |
| Bottom Bracket | 113mm Sealed Bearing Square BB |
| Pedals | Platform PP 9/16" |
| Chain | KMC Z33 1/2"X3/32" |
| Front Hub | 24H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
| Rear Hub | 24H, Double Contact Seals Bearing, 3/8" Axle/Nuts, Freewheel |
| Spokes | 14 Gauge / Brass Nipples |
| Rear Cog | 16T |
| Front / Rear Rim | Double Wall 24H 20"X1-1/8" Presta Valve |
| Tyres | Arisun XLR8 20x1-1/8" |
| Seat / Post | Mini Combo 25.4mm |
| Seat Clamp | Alloy 1 Bolt |
| Gearing / Ratio | 40x16 / 47.26 |
| Weight | 7.7kg (without pedals) |
